Razor 4 Sidemount System Complete


The Razor 4 Side Mount System is an integrated system designed specifically for side mount diving. It can be used for cold water diving with dry suits and steel tanks or warm water diving with wet suits and aluminum tanks.

The new system comes with a lot of enhancements without compromising the simplicity and functions of the design. Each part of the system is redefined to make your diving experience even better and more functional.

Out of stock

  • Check Mark Satisfaction Guaranteed
  • Check Mark Secure Payments
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
Categories: ,

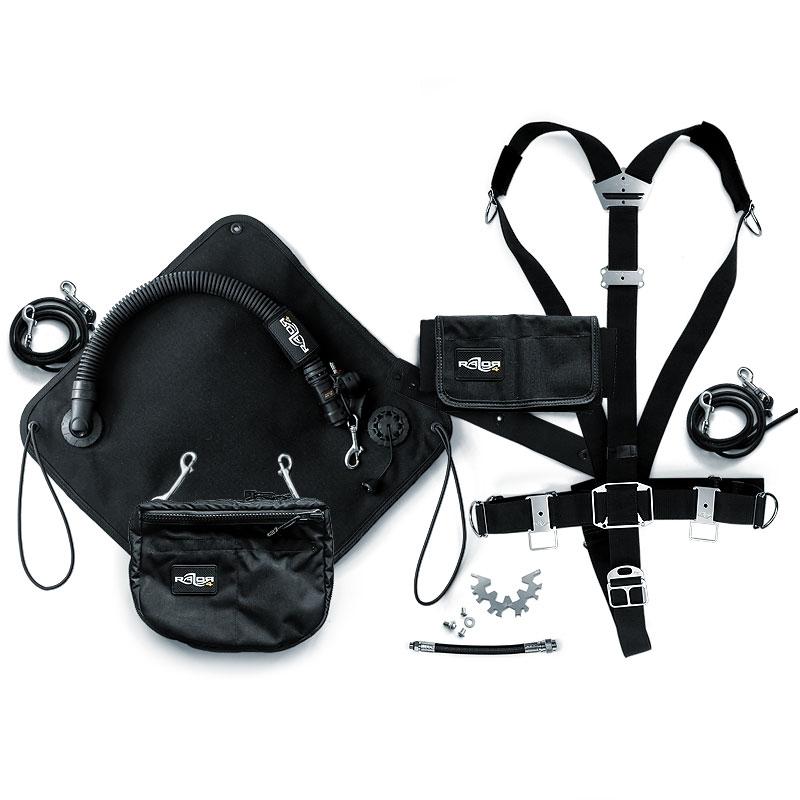

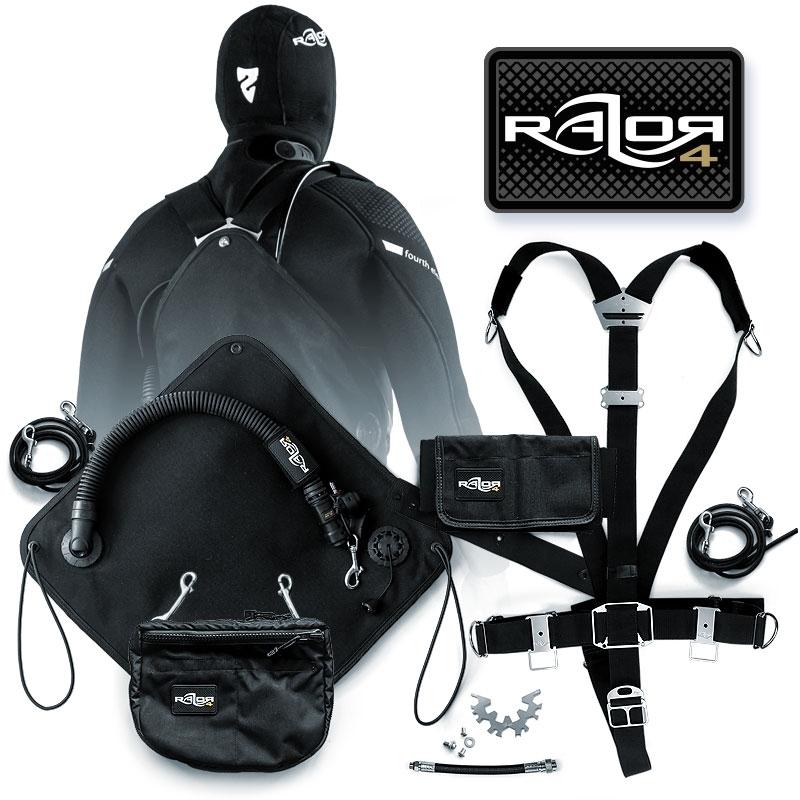

RAZOR 4 SIDEMOUNT SYSTEM COMPLETE has the following components:

Razor 4 Harness
Razor 4 Redundant BAT Wing
Razor 4 Pocket Weight System

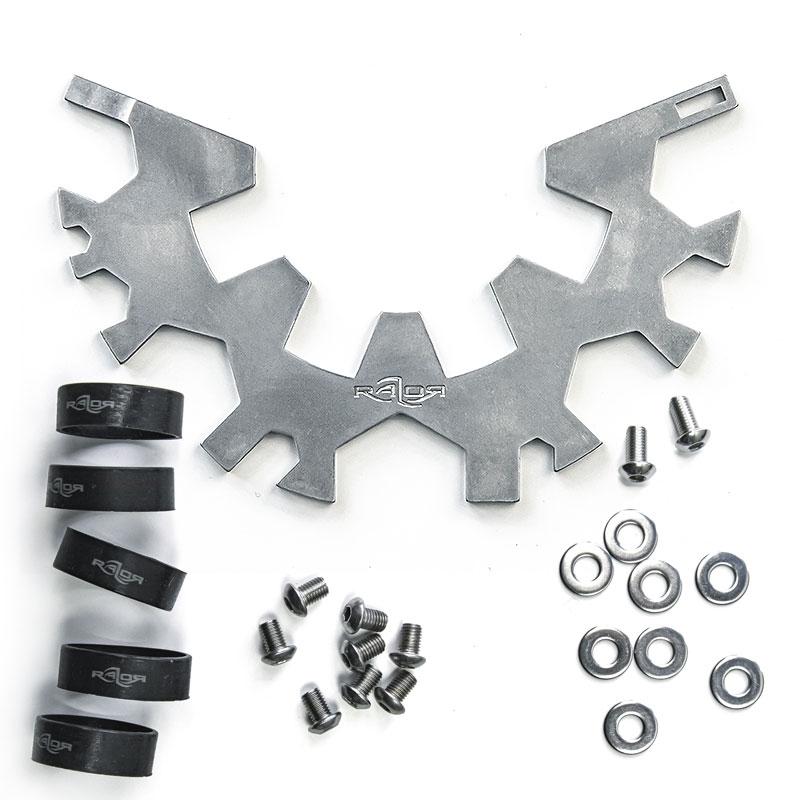

Razor 4 Multitool, Screws, and Washers
Spare Side Mount Bungee
2 Double enders for the Side Mount Pouch
Razor 4 Expandable Side Mount Pouch
6-inch LP Inflator Hose for the BAT Wing

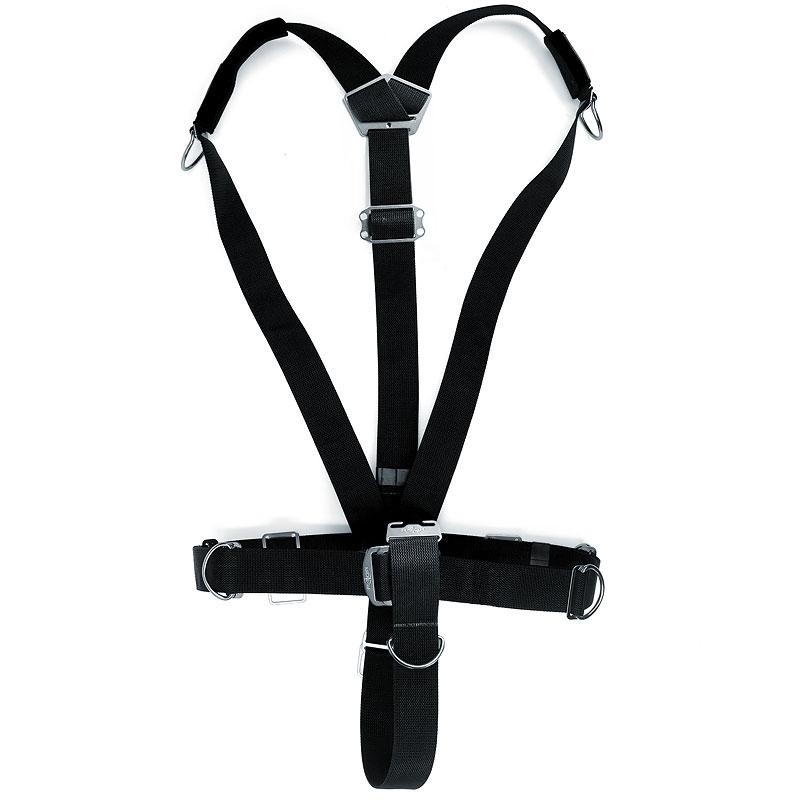

Changes on the Razor 4 Harness

  • New flexible but still extremely durable Webbing
  • New Delta Shoulder Plate  without Webbing screw and with 3 threaded holes to adjust the Wing height
  • New Bungee Tri-glide which allows as well easier setup for loop bungee style tank attachment
  • New Wing Closing triglide on the scooter loop for easy wing closing
  • Razor 4 Multitool for wing fitting exchanges and screwdriver for screws including different other tools to adjust hoses on first stages etc.
  • Very durable Razor branded inner tubes
  • All Razor branded and produced hardware including the metal plates, bolt snaps, and double enders are produced from high-quality stainless steel

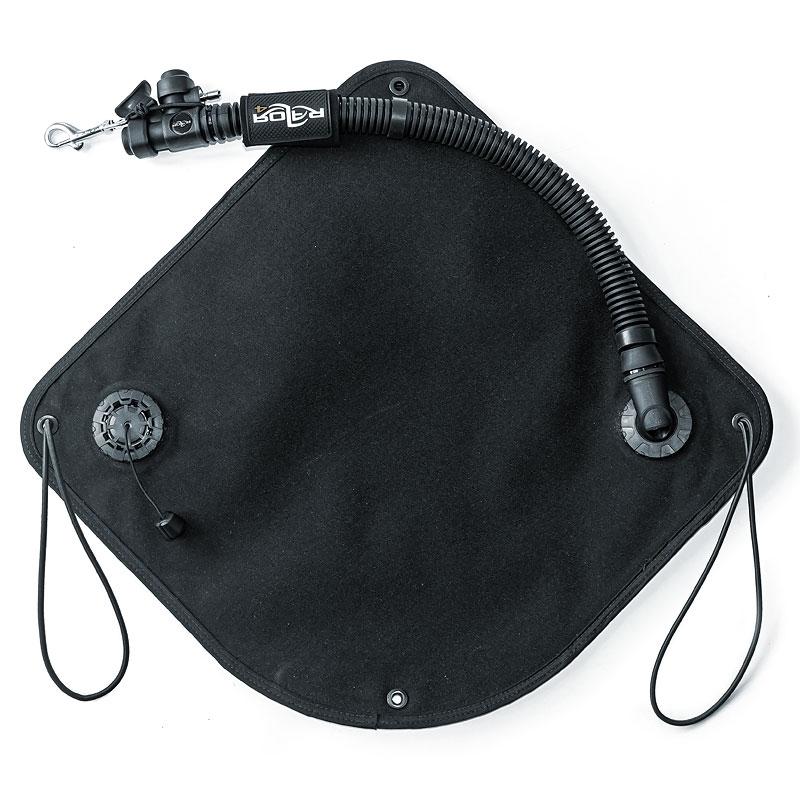

Changes on the Razor 4 BAT Wing

  • New high-quality Razor 4 power inflator with an improved piston-based system and with an increased-airflow system for high-density air
  • Super flat profile and integrated dump system by pulling on the corrugated hose. Dumping gas is possible from the front using either hand
  • With the new Power Inflator and Dump Valve system air can be dumped on either side of the wing with full flexibility
  • Adapted closing system which is easier to setup and use
  • Super low profile Dump valve with trapezoidal threading, studied to preserve the tightening torque and guarantee high tensile strength.
    Carbon-fiber-reinforced polymer the size of the gasket seat is more than halved, resulting in an exceptional saving of volume.
    An adjustable knob on the dump valve.
  • New Wing closing system with only 2 bungee loops, which can be easily attached to the harness independently

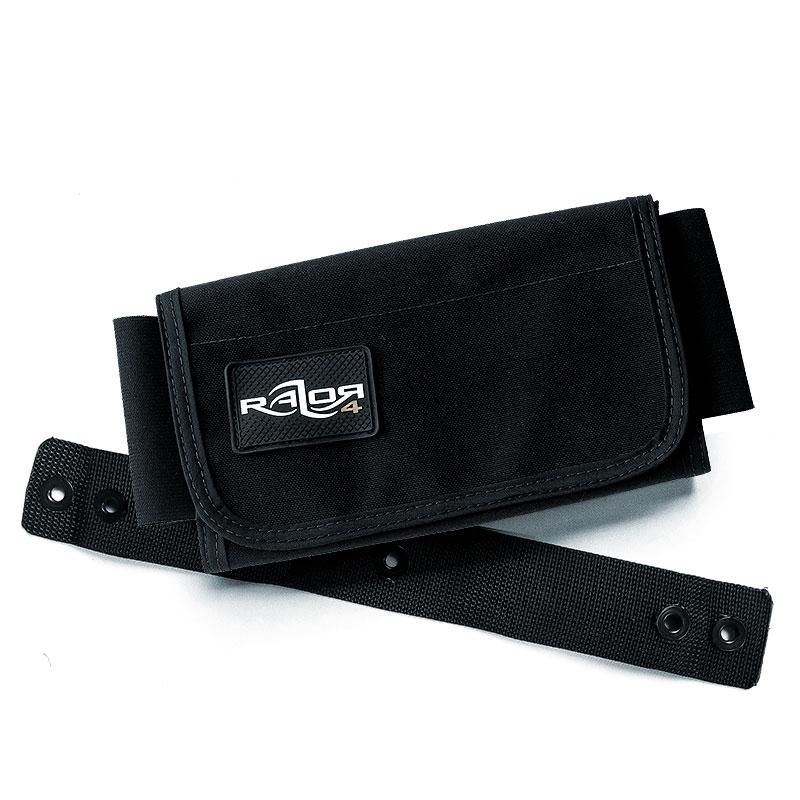

New Razor 4 Pocket Weight System

  • The new design of the Razor 4 Pocket Weight System allows you to stow all common sizes and shapes of weight pieces on the diving market (or in dive centers). You can fix it either using the Weight Strap that comes along with it, or directly on your Side Mount Harness (waist strap or lumbar strap).

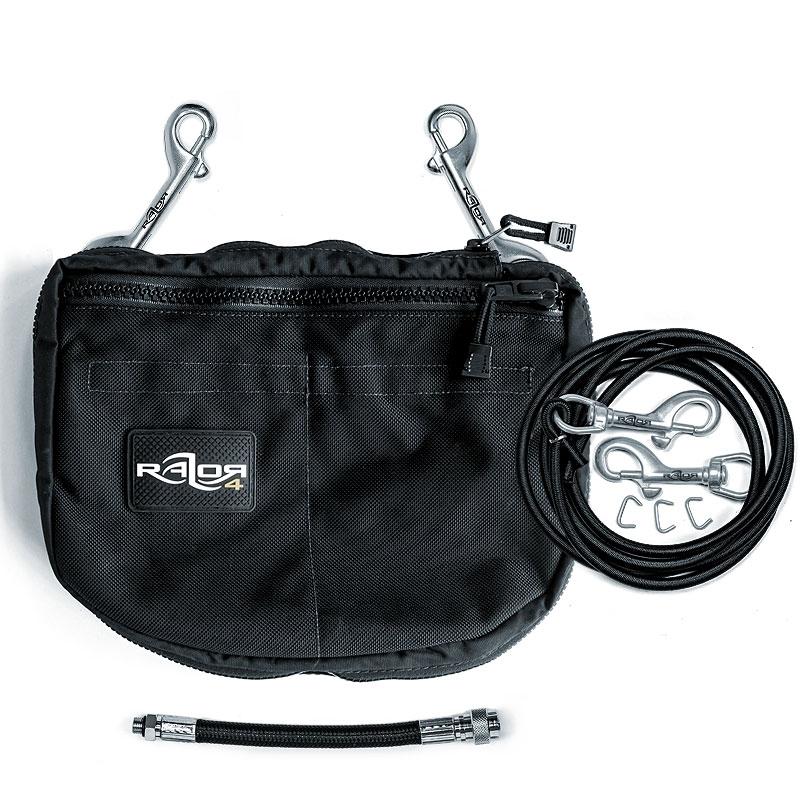

New Razor 4 Expandable Pouch

  • Large zippered opening for easy access and good visibility of internal contents
  • Heavy-duty rugged zipper to expand the pouch and double the volume
  • New-shaped bottom with water drainage
  • 2 inside velcro pockets for emergency tools such as a cutting device or a spare double ender
  • 2 Bungee loops inside to clip off items so that they can’t fall out and to help keep equipment organized

If you have any questions, please contact us!
